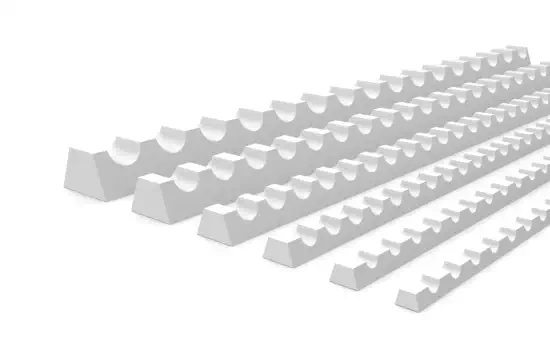

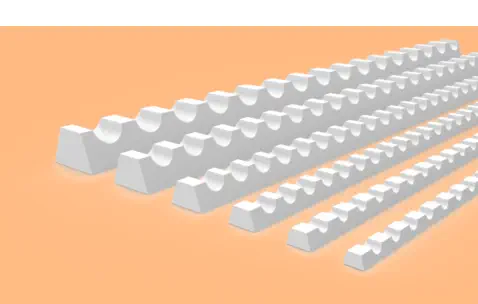

V-Guide Notched
Overview
LionExtrusion v guides are: easily weldable on PVC or PU based
belts thanks to our premium materials and low tolerances.
Color:
White
Any other color upon request
Spec.
Smooth Notched
Material
PVC
Our premium grade PVC
has superior flexibility
and resistance to lipids
thanks to our disuse of
fillers.
Valued at 70 degrees Fahrenheit
Get in Touch for More Information and to Place an Order: +1 (616)-370-3633

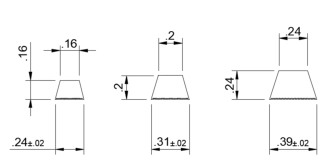

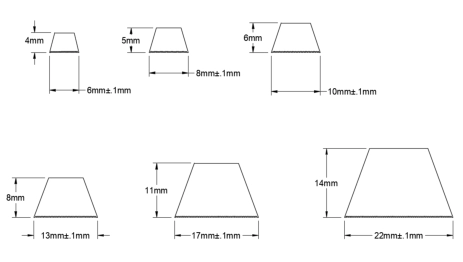

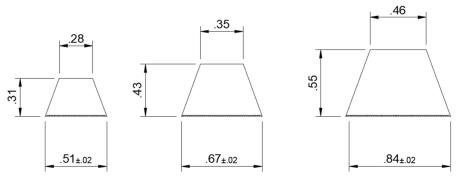

TYPE
STANDARD
ROLL
MIN. PULLEY
RUNNING SIDE
MIN. PULLEY
LONGITUDINAL
CONV. SIDE
K-6
K-8
K-10
K-13
K-17
K-22
FEET INCH INCH INCH
300
300
300
300
200
150
1.6
2
2.4
3.2
4.8
6.7
2.8
4
4.8
5.2
7.1
8.7
MIN. PULLEY CONV.
SIDE FOR TRANS-
VERSAL APPLICATION
1.6
1.6
2.4
3.2
4.8
6.7
Get in Touch for More Information and to Place an Order: +1 (616)-370-3633
Get In Touch For More Info and to Place an Order:
+1 (616)-370-3633

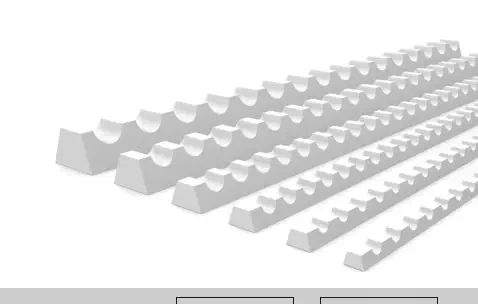

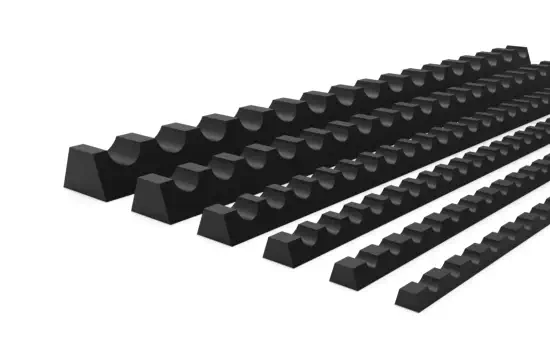

V-Guides Notched
Overview
LionExtrusion v guides are: easily weldable on PVC or PU
based belts thanks to our premium materials and low
tolerances.
Color:
White
Any other color upon request
Smooth Notched
Spec.
Material
Valued at 70 degrees Fahrenheit
PVC
Our premium grade pvc
has superior flexibility and
resistance to fat and
grease thanks to our
disuse of fillers.
